    HOME>Products>Military Test Equipment>Line Impedance Stabilization Network >Line Impedance Stabilization Network LISN AR 50
      Line Impedance Stabilization Network LISN AR 50
      Model：LISN AR 50

      Profile

      The line impedance stabilization network LISN AR 50 is designed as per section 20 and 22 in RTCA / DO 160 and used to standardize the impedance of the power source that provides input power for the EUT(s).
      PDFConsultation

      Online customized according to your needs>>

        Share
      • Feature
      • Standard
      • Parameter
      • Fitting
      • Services
      • Video
      The LISN AR 50 is designed as per section 20 and 22 in RTCA / DO 160 and used to standardize the impedance of the power source that provides input power for the EUT(s).
      The product is easy to use, what you only do is to connect input port with power supply and output port with EUT(s). The 50 Ω OUTPUT (coaxial output) port is standard type BNC interface.

      Features：
      > Stable performance;
      > Easy to use;

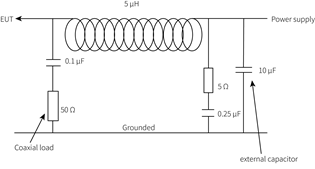

      Product schematic diagram:


      • RTCA / DO 160 section 20 & 22

      Technical Parameters

      Test Voltage (Vmax)

      600 VDC, 530 V 400 Hz, 270 V 890 Hz

      Test Current (Imax)

      50 A

      Transient Max. Current

      100 A

      Coaxial Terminal

      BNC type

      Inductance

      5 μH

      Coupling Capacitor

      0.1 μF

      Impedance Frequency Scope

      0.01 MHz ~ 400 MHz

      General Parameters

      Dimension

      220 mm (L)×220 mm (W) ×257 mm (H)

      Weight

      Approx. 5 kg

      Ambient Temperature

      15 ℃ - 35 ℃

      Relative Humidity

      45% - 75%

      Atmosphere Pressure Range

      86 kPa – 106 kPa

      Standard Accessories

      User Manual, LISN AR 50 coupling calibration capacitor

      Option

      LISN AR 50 impedance calibration jig
