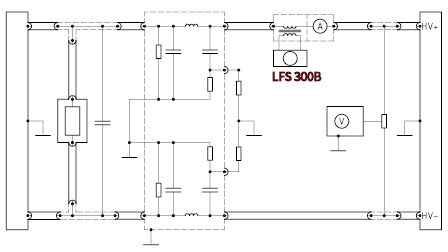

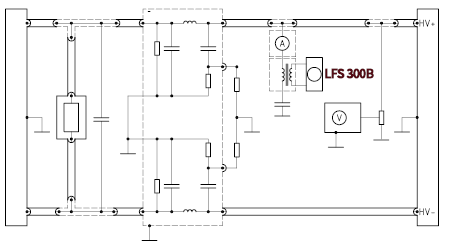

Technical Parameters |
|
|
Frequency Range |
3 kHz ~ 300 kHz |
|
Frequency Step |
1 kHz for 3 kHz ~ 30 kHz; 10 kHz for 30 kHz~300 kHz; |
|
Open-circuit Test Pulse Voltage (Upp) |
Upp= 0.5 V ~ 30 V（<=30 kHz） Upp= 0.5 V ~ 20 V（>30 kHz） Resolution 0.1 V |
|
Ripple Dwell Time |
1 s ~10 s, resolution 0.1 s |
|
Max. Power Consumption |
3000 W |
|
General Parameters |
|
|
Power Supply |
AC 110/220 V, ±10%,50 Hz/ 65 Hz |
|
Ambient Temperature |
15 ℃~ 35℃ |
|
Dimension |
8U |
|
Weight |
Approx. 40 kg |
|
Accessories |
|
|
1. Coupling transformer TPT-7637-4CL
|
Umax=30 V Imax=32 A BW(-1db)=1 kHz-30 kHz Dimension：180*140*45 mm |
|
2. Coupling Transformer TPT-7637-4CH
|
Umax=30 V Imax=3 A BW(-1db)=30 kHz-3 MHz Dimension：115*85*35 mm |
|
3. Automotive Testing software Autolab |
> Compatible with Windows XP/7/8/10 OS; > Support of Ethernet interface; > Powerful test sequence function and one-key remote control; > Support of report export and user-defined test report template; > Emergency stop with one key makes operation safe;
|
|
User manual, Test line, Fuse |
|
