FCC-LISN-5-(***)-01-DO-160F Series products are designed to test whether the electrical devices can meet  the requirement of Standard RTCA DO-160. DO-160 Rev F has its exclusive requirement for voltage of power supply. Its power range can reach from DC to 800Hz, 230V. LISN must test avionic’s equipment in this range of rated voltage and frequency.

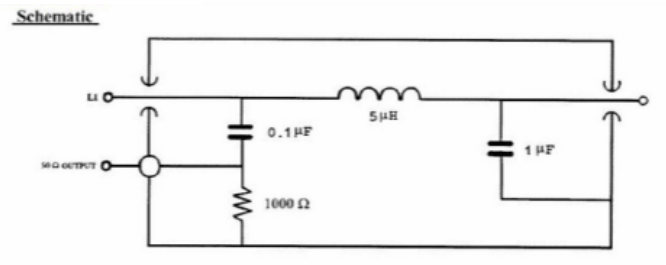

echnical Parameters
Frequency Range：10 kHz 一 400 MHz
Power supply line：uniconductor
common-mode impedance：See curved line
rated current：50A, 100A, 200A
Max.rated voltage：DC-1200 V
60 Hz-800 V
400 Hz-400 V
800 Hz-230 V
power supply connector： Advanced plug and socket

RF output connector：TMyulti- safety connecting socket

According to user’s requirement, feed through capacitors of 10 ufd are available on request.

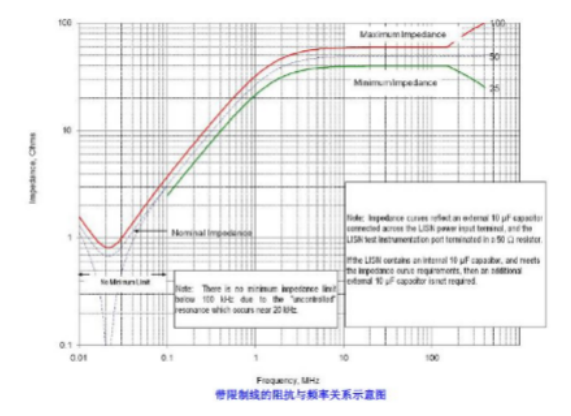

Diagram of relationship between impedance with limiting line and frequecy

Note:
1.There is no minimum impedance limits under frequency of 100 kHz because of uncontrolled resonance in the vicinity of 20 kHz.
2.Impedance curved lines reflect the case of external 10 μF capacitor passing through LISN power supply input terminal, and the terminal of testing instrument is a resistor of 50 Ω. If the 10 μF capacitor are built in LISN and conform to the requirement of impedance curved lines, extra external 10 μF capacitor will not be needed.
