General Parameters

Display

5.7-inch TFT touch screen

Scope of Working Power Supply

100 ~ 264 V AC, 47 ~ 63 Hz

Fuse

6A

Maximum Power Consumption

300 W

Communication Method

Ethernet LAN

External Control Mode

25 needle parallel thread

External Trigger Input

BNC, 5V TTL

CRO Triggers Output

BNC, 5V TTL

Operation Control Input

BNC, 5V TTL

Pulse Triggering Method

Manual, automatic, externally triggered

External Synchronous Input

20 ~ 400 V, 45 ~ 65 Hz

Warning Light Output

Multi core connector output, matched with external alarm light module (optional)

Safety Circuit

Short circuit of safety loop, stop working when the safety loop is open circuit

Failure Detection

When it fails, the front panel LCD displays and interrupts the instrument's operation

Instrument Working Status Indication

LED indication, LCD display

Instrument Grounding Connection Method

Use a flat grounding wire

Chassis Size

6U L * W * H: 620 * 450 * 280 mm

Instrument Weight

About 50 kg

Environmental Scope

15℃ ~ 35℃

Pressure Range

86 kPa ~ 106 kPa

Humidity Range

45% ~ 75%

Built in coupling/decoupling network (single-phase fully automatic)

EUT Carrying Capacity

AC 300 V 20 A/32 A (optional) 50/60 Hz

DC 300 V 20 A/32 A (optional)

EUT Power Input and Output

4mm banana plug cable

EUT Voltage Monitoring Output

BNC output, 100V: 1V

EUT Current Monitoring Output

BNC output, 10 A: 1 V

Synchronization Method

Internal synchronization, external synchronization, asynchronous

Internal Synchronization

0 °~360 °, 1 ° step setting or random mode

Pulse group Coupling/decoupling

Built in single-phase automatic coupling/decoupling network

1.2/50 μs Combined Wave Coupling/decoupling

Built in single-phase automatic coupling/decoupling network

Ringing Wave Coupling/decoupling

Built in single-phase automatic coupling/decoupling network

IEC-61000-4-4 Electrical Fast Transient Pulse Test

Test Voltage Range

0.25 kV ~ 6 kV (±10%)

Network port test voltage range

0.25 kV ~ 5.5 kV (±10%)

50 Ω Calibration Waveform

5 ± 1.5 ns, 50 ns ± 15 ns

1000 Ω Calibration Waveform

5 ± 1.5 ns, 50 ns(- 15 / + 100 ns)

Pulse Frequency

0.1 kHz ~ 1000 kHz

Pulse Group Period

11 ms ~ 9999 ms

Pulse Train Duration

0.075 ms ~ 750 ms

Experimental Mode

Optional scheduling mode

Polarity

Positive, negative, first positive and then negative

Coupling Capacitor

33 nF

IEC-61000-4-5 Surge Immunity Test

Test Voltage

0.25 kV ~ 6 kV (±10%)

Test Current

0.125 kA ~ 3 kA ± 10%

Voltage Waveform

1.2 μs ± 30% , 50 μs ± 20%

Current Waveform

8 μs ± 20%, 20 μs ± 20%

Output Impedance

2 Ω, 12 Ω

Test Interval Time

6 ~ 99 s(the shortest depends on the test voltage)

Number of Experiments

1~999 times

Experimental Mode

Optional scheduling mode

Polarity

Positive, negative, first positive and then negative

Calibration Capacitor

18 μF built-in

Coupling Resistance

0 Ω, 10 Ω

Coupling Capacitor

Built in at 9 μF and 18 μF

Surge Voltage Peak Detection

LCD display, BNC output 1000V: 1V

Surge Current Peak Detection

LCD display, BNC output 500A: 1 V

IEC-61000-4-5 Communication Wave Test

Test Voltage

0.25 kV ~ 6 kV (±10%)

Test Current

6.25 A ~ 150 A ±10%

Voltage Waveform

10 μs ± 30% , 700 μs ± 20%

Current Waveform

5 μs ± 20%, 320 μs ± 20%

Output Impedance

15 Ω, 40 Ω

Test Interval Time

6 ~ 99 s(the shortest depends on the test voltage)

Number of Experiments

1~999 times

Experimental Mode

Optional scheduling mode

Polarity

Positive, negative, first positive and then negative

IEC-61000-4-8 Power Frequency Magnetic Field Test

Magnetic Field Intensity

TCXS 111 single turn magnetic field coil:
1 A/m~100 A/m (continuous)
100 A/m~400 A/m (1 s~10 s short-term)

TCXS 113 three turn magnetic field coil:
1 A/m~300 A/m (continuous)
300 A/m~1200 A/m (1~10s short-term)

Current Waveform

50 Hz/60 Hz sine wave

Current Distortion Rate

< 5%

Generator Output Current

1 A ~ 450 A

Waveform Interval Time

1 s ~ 9999 s

Test Duration

1 s ~ 28800 s

Magnetic Field Coil Size

1 m x 1 m, other

Shape of Magnetic Field Coil

Rectangle, Other

Output Magnetic Field Strength

Scheduling Settings

IEC-61000-4-9 Pulse Magnetic Field Test

Magnetic Field Strength (1*1 m coil)

100 A/m ~ 1200 A/m

magnetic Field Strength (1*2.6 m coil)

100 A/m ~ 880 A/m

Coil Waveform (1*1 m Single Turn)

8 μs(+ 2.4 μs /- 0.8 μs)，20 μs(+ 6 μs/-2 μs)

Coil Waveform (1*2.6 m Single Turn)

8 μs(+ 3.2 μs/- 0.8 μs)，20 μs( + 8 μs/ -2 μs)

Test Interval Time

5 ~ 99 s(the shortest depends on the magnetic field strength)

Number of Experiments

1~999 times

Experimental Mode

Optional scheduling mode

Polarity

Positive, negative, first positive and then negative

Magnetic Field Coil Size

1 m x 1 m, other

Shape of Magnetic Field Coil

Rectangle, other

IEC-61000-4-11& IEC-61000-4-29 Cycle Drop Test

EUT Carrying Capacity

AC 300 V 20 A/32 A (optional) 50/60 Hz

DC 100~300 V 20 A/32 A (optional)

EUT Voltage Frequency

45 ~ 65 Hz

100 Ω Calibration Waveform
(Communication Loss)

1 ~ 5 μs

100 Ω Calibration Waveform
(DC Drop)

1 ~ 50 μs

Impulse Current

500 A

Interrupt Level

0%

Temporary Voltage Drop

0%~100% (applicable to attachment VVT/VMT series)

Duration of Temporary Descent and Interruption

0.3~9999 cycles or 1ms~9999ms

Temporary Reduction and Interruption Interval Time

50 ms ~ 50000 ms

Temporary Reductionand Interruption of
Test Frequency

1 ~ 9999 times

Temporary Descent, Interruption of
Ascent, Descent time

1~5 μs (100 Ω load)

IEC-61000-4-12 Ringing Wave Test

Open Circuit Output Voltage (PK1)

0.25 kV ~ 6 kV ± 10%

Open Circuit Voltage Oscillation Frequency (1/T)

100 kHz ± 10%

Before the Waveform of Open Circuit Voltage(T1,10%-90%)

PK1 0.5 μs ± 30%

Open Circuit Voltage Decay Rate

40%<(PK2)/(PK1)<110%, 40%<(PK3)/(PK2)<80%，40% <(PK4)/(PK3)< 80%

Short Circuit Current Wave Front
(T2, 10% -90%)

0.2 μs ≤ Pk1 ≤ 1 μs

Open Circuit Voltage (PK1) 6000 V When, Short-circuit Current (P1)

500 A ± 10% at 12 Ω; 200 A ± 10% at 30 Ω

Output Impedance

12 Ω, 30 Ω

Test Interval Time

6 ~ 99 s

Pulse Frequency

1~999 times

Experimental Mode

Optional scheduling mode

Polarity

Positive, negative, first positive and then negative

CCS 600 Selection Guide List

Host

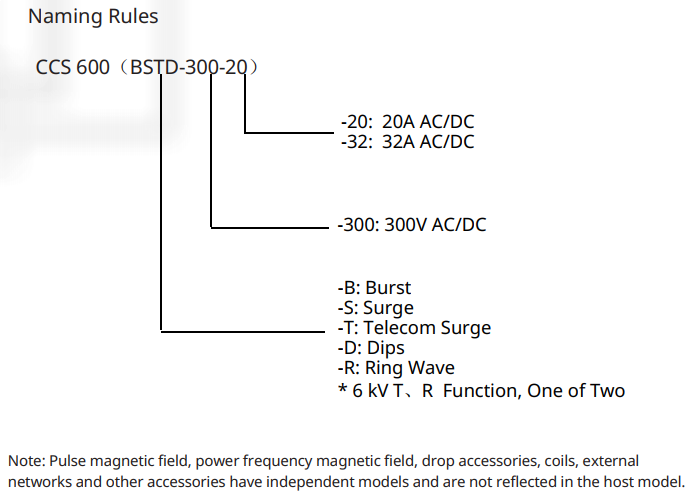

Compact Immunity Test System CCS 600

IEC 61000

CDN single-phase three wire network

-4-4

-4-5

-4-8

-4-9

-4-11

-4-12

-4-29

√

√

√

√

√

√

√

Optional module

Power frequency
magnetic field module
MFT 400 / 1200

√

AC power supply
temporary drop,
short-term interruption,
voltage change module
VVT 2216S / SV

√

Power failure and power
frequency magnetic
field module
VMT 2216S / SV

√

√

Pulse group coupling/
Decoupling network
EFTN xxxxT series

√

Can root
according to
EUT electric
Pressure
the electric
flow etc.
level want
seek set system

Lightning surge
coupling/Decoupling
network
SPN xxxxT10 series

√

√

Surge and group
pulse coupling/
decoupling network
SEPN xxxxT10 series

√

√

√

Magnetic field coil
TCXS series

√

√

Capacitive coupling
Clamp
CCC 100(SHVconnection terminal)

√

Note: If only the host is selected and VVT or VMT testing modules are not available, an additional power supply is required for IEC 61000-4-11/29 testing

List of Testing and Measurement Selection Guidelines

Instrument name and model

IEC 61000

-4-4

-4-5

-4-8

-4-9

-4-11

-4-12

-4-29

High voltage
differential
probe
VCF 80

√

√

√

√

Broadband
current
monitoring
clamp
CM 0220M

√

√

√

10 kV surge
calibration
module
CCM 1000

√

EFT pulse
train generator calibration
device
TFB 500 / 1000

√

Immunity
testing
software
CoreLab

√

√

√

√

√

√

√
